YK-2000mm box stitching machine:
● YIKE GROUP is a high-tech company specialized in R&D, manufacturing & sales of corrugated carton-packing machines.
● Each variety of products is designed and manufactured by YUNXIANG as per Taiwan, Japan and European standards, combined with domestic actual situation in production. Our Box stitching machine series, including Full Auto Gluers, Semi-Auto Gluers, Semi-Auto high-speed carton press and PE binders, are sold to many countries in Europe, Asia and Middle East.
● We will continue to uphold the operation concept of "people first, innovation continuously", insists on the tenet of "honest business and efficient service", and regards "create values for customers attentively.

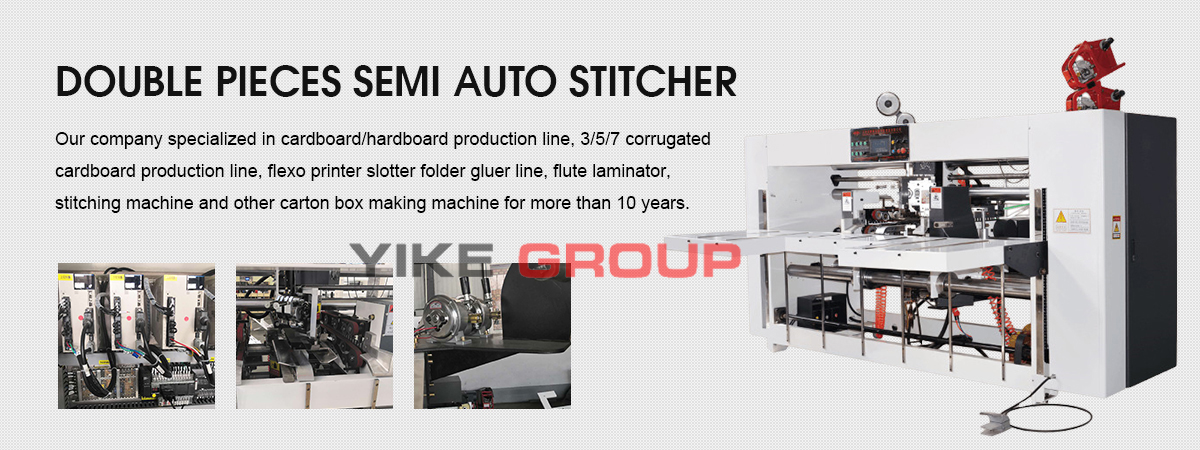

Double pieces stitching machine for carton box | ||||
TYPE | YKDS-2000 | YKDS-2500 | YKDS-3000 | YKDS-3500 |
Max. size (L+W)*2 | 3200mm | 4200mm | 5200mm | 6200mm |
Min. size (L+W)*2 | 1100mm | 700mm | 1100mm | 1100mm |
Max.carton Length(mm)A | 1400mm | 1900mm | 2400mm | 2900mm |
Min.carton Length (mm)A | 350mm | 200mm | 350mm | 350mm |
Min.Carton width B | 200mm | 200mm | 200mm | 200mm |
Min carton height(C+D+C) | 300mm | 300mm | 300mm | 300mm |
Total power | 6kw | 6kw | 6kw | 6kw |
Nail distance | 30-120mm | 30-120mm | 30-120mm | 30-120mm |
Machine speed | 500-600nails/min | 500-600 nails/min | 500-600 nails/min | 500-600 nails/min |
Wire Model No. | 17-18 | 17-18 | 17-18 | 17-18 |
Nail quantity | 2-99 | 2-99 | 2-99 | 2-99 |
Characteristics:

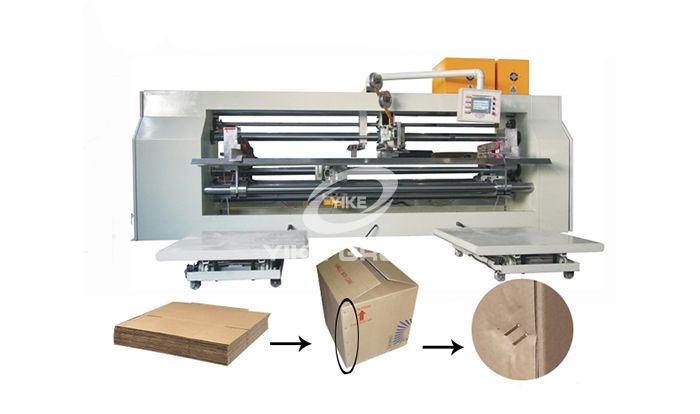

● Box stitching machine suit for large carton
● Suit for three/five layer, and uncovered ones with bottom(seven layer boxes needs to be customized)
● Suit for single/double or unequal carton
● Single/double nails, strengthen nail can be fulfilled in one time
● Stitching pitch 30mm-120mm can easily be set in computer
● Box stitching machine speed: 500 stitches/minute
● Import double servo system and electric control system
● Automatic warning system to display fault instruction in LCD
