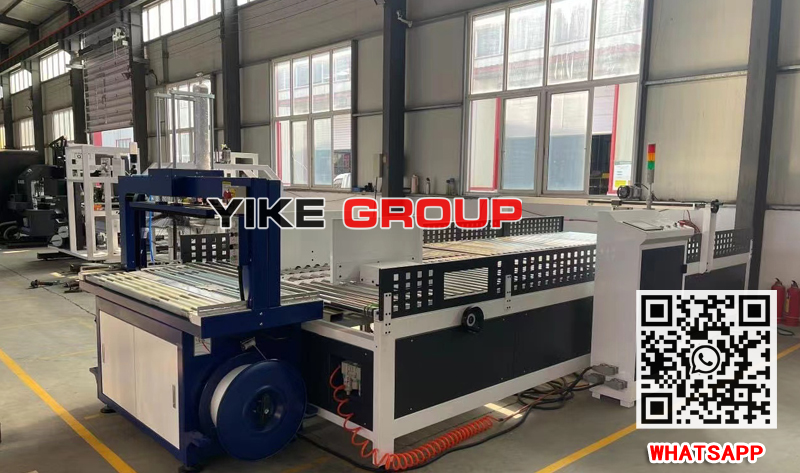

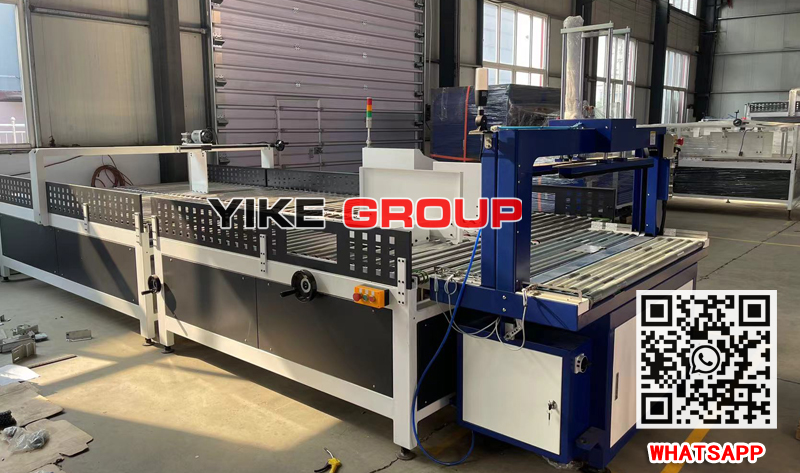

YK-1100 Auto PP strapper machine

YK-1100 Auto PP strapper machine

AUTOMATIC PP Tape STRAPPING/banding MACHINE

1. The machine is mainly composed of 4 units: receiving sheet turning unit, pat in order unit, conveying unit, and pressurized strapping unit.

2. Reduce rely on manpower, replace workers.

3. Work is compact, no need human intervention

4. Carton boxes after strapping are mouth tight and solid, no rebound, less sticky box edge breakage, etc

5. Less workers, higher speed, 2 ~ 4workers less than ordinary strapping machine, 10 to 20 workers less than manual strapping.

6. Suitable for exported packaging, environmental packaging, such as drinks box, beer case, instant noodles box, ceramic tile box, these high class packaging carton boxes.

7. Max sheet size: 1100x1100mm

8. Min sheet size: 300x350mm

Ø The functional characteristics:

1. This product is suitable for use in carton manufacturers for matching glue boxes or ordering lines. The finishing package can be adjusted automatically according to the carton size.

2. The form of strapping: parallel 1-2 channels, the way there are photoelectric, manual and so on.

3. The ram steering power roller conveyor line: speed: 45mm / min.

4. The bottom bonding surface ≥ 90% bonding width ≥ 20mm bonding position deviation ≤ 0.5mm

5. As needed: configure the EFFL telescopic rack connected to other equipment.

6. The size of the transport equipment: length 4850 × width 2300 × height 2000 (excluding telescopic rack)

Ø The equipment technical parameters:

1. Power supply 380V/50HZ 2KW/5A

2. Speed ≤ 12-14 packets / min. (depending on the size of the carton)

3. Gas source: 6kg/cm3.

4. Table height: 850mm.

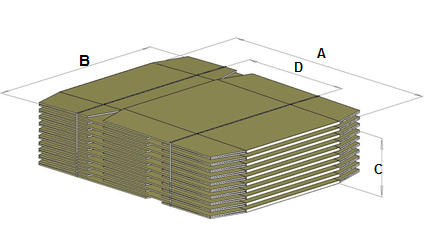

5. Package size: A: L (300-1150)  B: W (350-1150)  C: H (0-350) mm

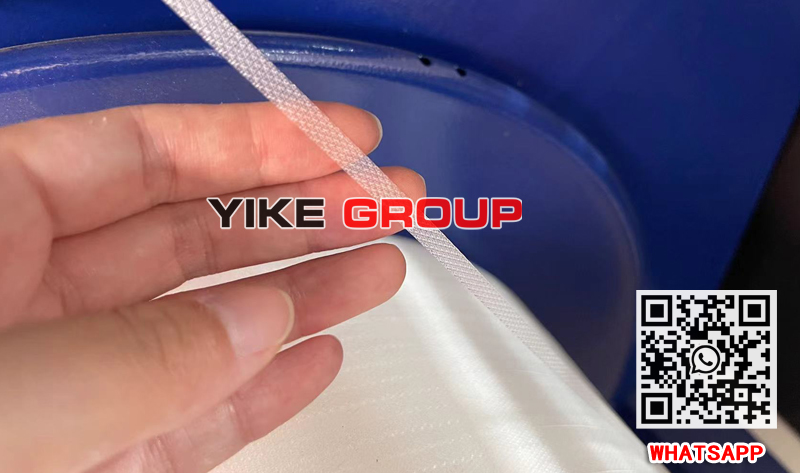

6. Applicable packing belt: Width 5mm, Thickness 0.6mm.

7. Strapping form: Parallel 1-2 channels, the way there are photoelectric, manual and so on.

8. Noise: Under working environment, the noise is ≤75DB.

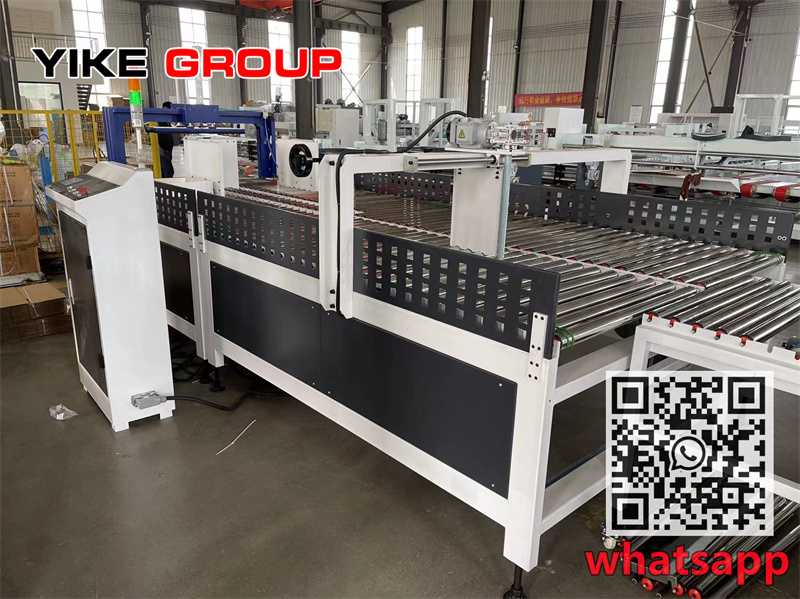

Ø Steering section:

1. The drum is made of stainless steel tube wall 1.5mm.

2. The roller bearing adopts the Harbin brand.

3. The position of the ram is manually adjusted by the screw according to the size of the carton.

4. The fastest speed of the steering line: 50m/min.

Ø Push In Line:

1. The drum is made of stainless steel tube wall 1.5mm.

2. The roller bearing adopts the Harbin brand.

3. The motor adopts frequency conversion control, starts up, runs smoothly, and can adjust the speed of the slap according to the size of the carton.

4. Adjust the size of the carton to be completed by manually adjusting the screw.

5. The fastest speed : 70m / min.

Ø The packaging department:

1. With one unmanned pressure baler, the frame size is 1250 wide × 500 high

The machine size is 1520×680×2000mm.

2. Applicable packing belt: width 5mm, thickness 0.6mm.

3. Bearing capacity: 80Kg.

4. Reel: The inner diameter of the roll paper core is 200mm-210mm, the outer diameter of the roll is 400mm-450mm, and the width of the roll is 170mm-190mm.

5. Bonding method: hot melt method.

6. Strapping tightness: 0-45Kg.

7. Strapping form: parallel 1-2 channels, the way there are photoelectric, manual and so on.

8. The bottom bonding surface is ≥90%, the bonding width is ≥20mm, and the bonding position deviation is ≤0.5mm.

9. Electrical configuration: Panasonic PLC; Schneider inverter; Schneider contactor; Taiwan Yadeke cylinder; Taiwan Wanxin motor.

Ø Laifu wheel telescopic conveyor:

1. The reed telescopic carriage of Laifu Wheel has the characteristics of flexible expansion, flexible use and labor saving. Sizes can be customized as needed.

2, easy to use and installation, a unit can be up to three times the shortest and longest.

Ø Packing pipeline configuration sheet
