Paper Feeding Part
● Adsorption automatic feeder, one-slotting, Cut corner, creasing, drilling.
● Feed 10,000 per hour speed, precision die cutting from+0.75mm to-0.75mm
● Phase planetary gear used electric adjustment, turn on and turn down were quick adjustment.
● Before manually adjust block cardboard side block electric adjustment
● Paper rollers have a plastic face, to prevent cardboard, to increase feed accuracy.

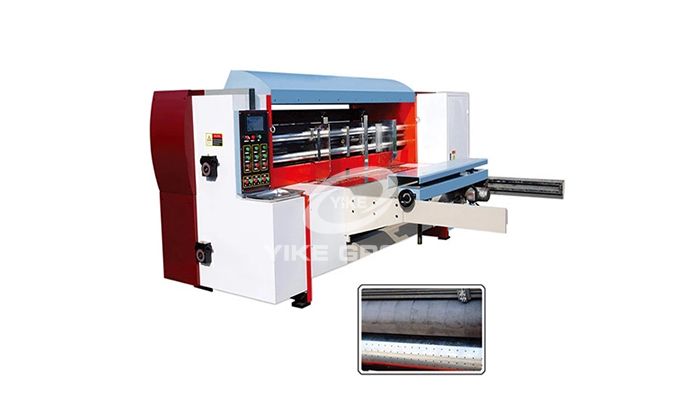

Die Cutting Unit
● Die cutting roller for the high quality steel materials, 30mm thickness.
● Balance correction, hard-chrome plating.
● Wallboard for high-quality cast iron material, 50mm thickness, and large processing center production.
● Soft-roll automatic grinding institutions to pouches repeat usage,grinding3-4times;
● Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line;
● Use Imported Polyurethane soft rubber, ease of installation, can cut 12000000 times;
● Mechanical soft roll about 40 mm lateral movement, the pads wear uniform;
● 40cr material the use of grinding gears for 6, low noise long life;
● Die cutting roller cylinder automatic separation devices to reduce wear pouches.
