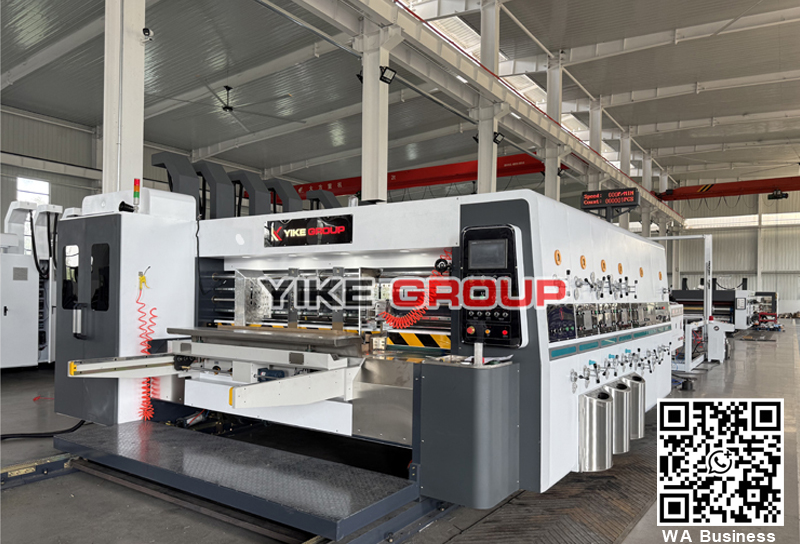

Flexo Printer Slotter Die Cutter Machine
Type:
YK-920; YK-1220; YK-1224; YK-1424......
Lead-edge Feeding System
● Lead-edge suction feeding system, easy operation, high accuracy, （adopts lead feeder system).
● 7.5KW high pressure centrifugal fans, according to the cardboard
● Warping degree of frequency control pressure, to ensure warp
● Cardboard or thin cardboard high-speed accurate transmission.
Printer Unit
● Printing Roller
● With printing plate, outer diameter φ420mm
● High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
● Roller horizontal direction and circumferential direction with datum line, convenient for align plate
● Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
Slotting Unit
● Single-axle double-knife slotter, use Internal tooth structure adjutment the height of box, So that oil does not easily contaminated cartons
● The first pressure line round, after preloading cardboard not easily crush
● The above press round Urethane appearance package, will not damage the cardboard
● The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise
Die-Cutting Unit
● Rubber roller mechanical spiral commutation 40mm move about horizontal structure
● Die-cutter phase, computer and electric digital control
● Horizontal phase, computer and electric digital control, range ±5mm
● Rubber roller and die roller gap use computer and electric digital control
